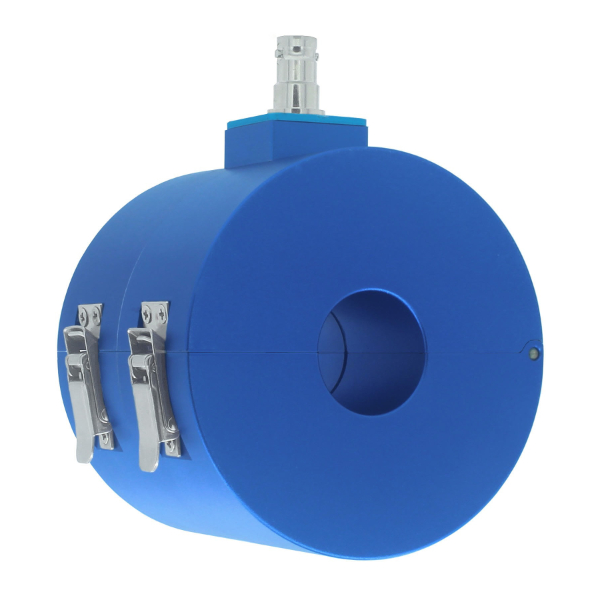

TBBCI1-300K420-HV snap-on bulk current injection probe

The TBBCI1-300K420-HV snap-on Bulk Current Injection probe can be used in the frequency range up to 400 MHz.

The BCI probe can be used for ISO11452-4 BCI testing, GJB 151B, CS114 testing for MILSTD 461G and DO160 section 20 testing. The probe also complies with DO160 section 22, pulse induced dampened sinusoidal test for 5 kV pulse injection.

The insertion loss is 5 dB for most of its bandwidth. The probe is individually characterized and usable in the frequency range 10 kHz – 450 MHz. The probe can be used to inject severity levels I (60mA), II (100mA, III (150mA), IV (200mA) and customer specific severity level V up to 350 mA.

The probe can also be used for RF current monitoring applications.

The aperture of the RF current monitoring probe is 27 mm. The typical insertion loss is 5 dB and the typical transfer impedance is 26 dB Ohm.

• Compliance: ISO 11452-4; MIL-STD-461 CS114, GJB 151B-2013, DO-160
• Characterized freq. range: 10 kHz to 500 MHz
• Insertion loss: 5 dB typ.; 50 Ohm system (100 Ohm loop impedance)
• Transfer impedance: 29 dB Ohm typ.; 50 Ohm system (100 Ohm loop impedance)
• Power rating: capable of injecting severity levels I, II, III, IV according to ISO 11452 and customer specified level V up to 350 mA
• Max. core temperature: 80 °C
• Connector type: BNC-SHV
• male Aperture diameter: 27 mm
• Outside diameter: 92 mm
• Height: 76 mm
• Weight: 1.2 kg
