TBL501000-1 50uH Line Impedance Stabilisation Network LISN – CISPR 16

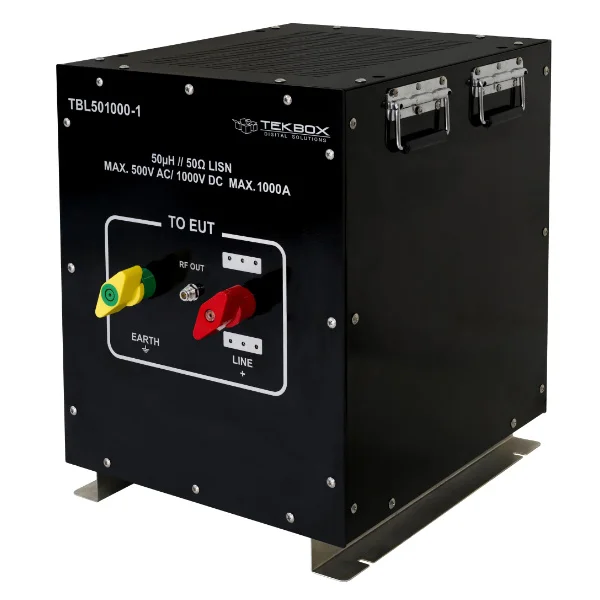

The TBL501000-1 is a high current single path 50µH // 50 Ω LISN for conducted emission measurements of DC or AC-powered electronic equipment. It is designed according to the CISPR 16-1-2 standard and characterized in the frequency range of 150 kHz to 30 MHz.

Combining two LISN with the Tekbox LISN Mate enables separate measurement of common mode and differential mode noise. EUTs with 3 phase supply require three or four pieces of TBL501000-1, depending on whether the product is supplied in delta or star configuration.

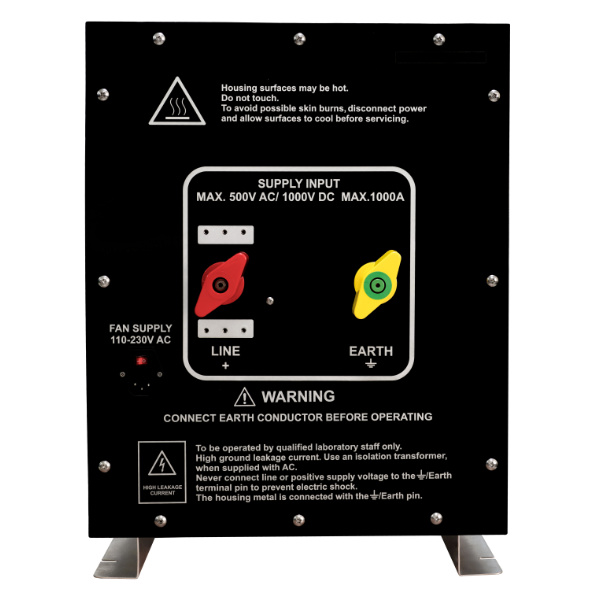

The LISN is equipped with fans to enable continuous operation up to 1000 A. The fans are available with either 100 V – 120 V or with 200V – 240 V supply voltage. A C14 connector with integrated switch sits on the rear panel. The LISN can be operated continuously with up to 500 A without fan.

An exposed stainless steel bottom profile enables convenient ground plane connection.

• LISN type: single path V-AMN, 50Ω // 50µH; no 250µH pre-filter
• Characterized Frequency range: 100 kHz – 30 MHz
• DC Resistance: < 3 mΩ Maximum current: 1000 A continuous with fan ON; 500 A continuous without fan Operating voltage range: 0 – 1000V DC; 0 – 500V AC (50/60 Hz) High pass to suppress residual AC: default jumpered ON; residual AC suppression > 66dB; RF out not terminated
• EUT connector: High current wing terminal, M16 x 1.5
• Source connector: High current wing terminal, M16 x 1.5
• Earth: exposed stainless steel profile with mounting slots
• RF connector: N-Female
• Fan: Available with 100V-120V or 220V-240V supply voltage; C14 connector with integrated switch on rear panel
• Dimensions: W x H x L; 480 mm x 600 mm x 660 mm;
• Weight: 70 kg

• EMC conducted noise measurements
