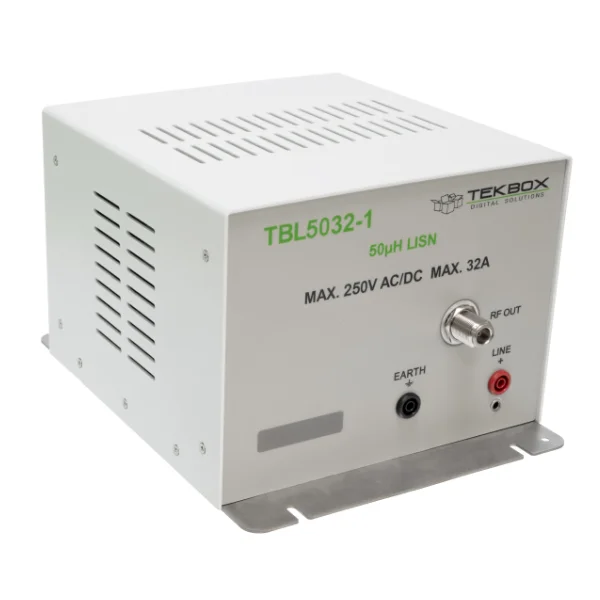

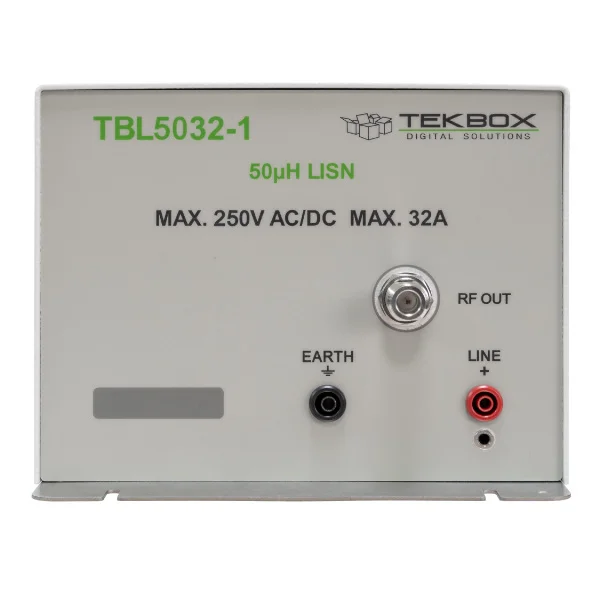

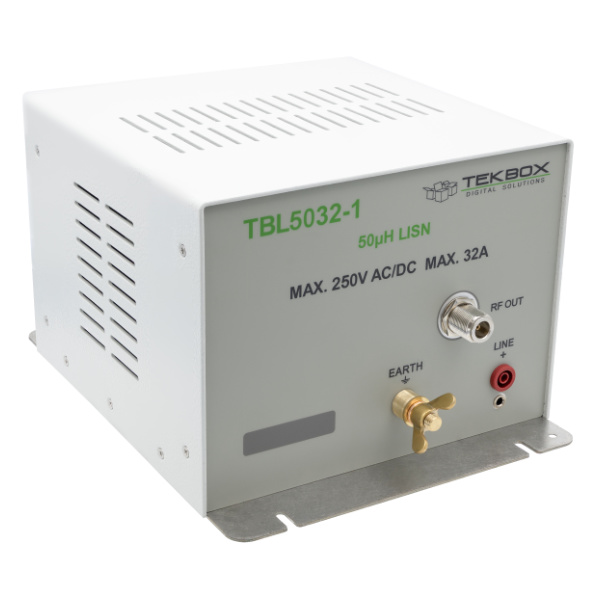

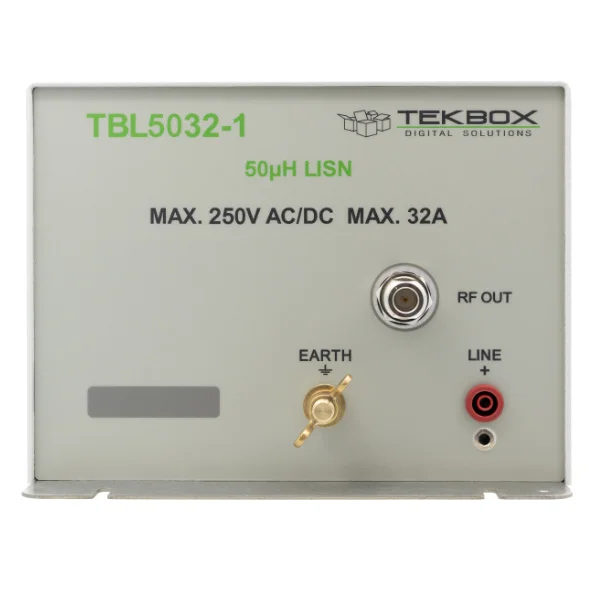

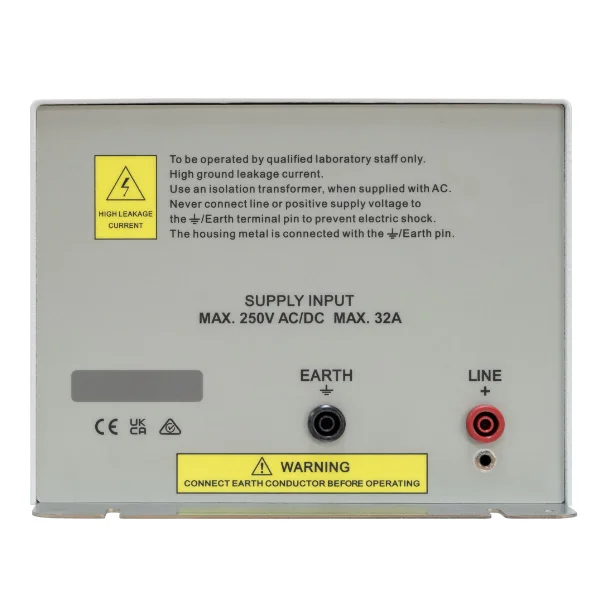

TBL5032-1 50uH Line Impedance Stabilisation Network LISN – CISPR 16

The TBL5032-1 is a single path 50µH (+5 Ω) // 50 Ω LISN for conducted emission measurements of DC or ACpowered electronic equipment. It is designed according to CISPR 16-1-2 and MIL-STD-461G standards and characterized in the frequency range of 10 kHz to 100 MHz.

Setting a high current jumper shorts the 5 Ohm resistor and configures it as 50Ω // 50µH LISN according to CISPR 16-1-2. Removing the jumper configures the LISN to (50µH + 5 Ω) // 50 Ω for MIL-STD application.

The LISN is characterized from 10 kHz to 100 MHz.

Combining two LISN with the Tekbox LISN Mate enables separate measurement of common mode and differential mode noise. EUTs with 3 phase supply require three or four pieces of TBL5032-1, depending on whether the product is supplied in delta or star configuration.

An exposed bottom panel enables convenient ground plane connection. The unit comes equipped with a N-male to N-male RG223 cable.

• ISN type: single path V-AMN, configurable (jumper) as 50Ω/50µH+5 Ω or 50Ω/50µH; no 250µH pre-filter
• Characterized Frequency range: 10 kHz – 100 MHz
• DC Resistance: 25 mΩ
• Maximum current: 32A continuous
• Operating voltage range: 0 – 500V DC; 0 – 270V AC (50/60 Hz), 0 – 120V AC (400 Hz)
• EUT connector: 4mm Banana socket
• Source connector: 4mm Banana socket
• Earth: exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw
• RF connector: N-Female
• Dimensions: W x H x L; 205 mm x 155 mm x 360 mm;
• Weight: 3 kg

• EMC conducted noise measurements
