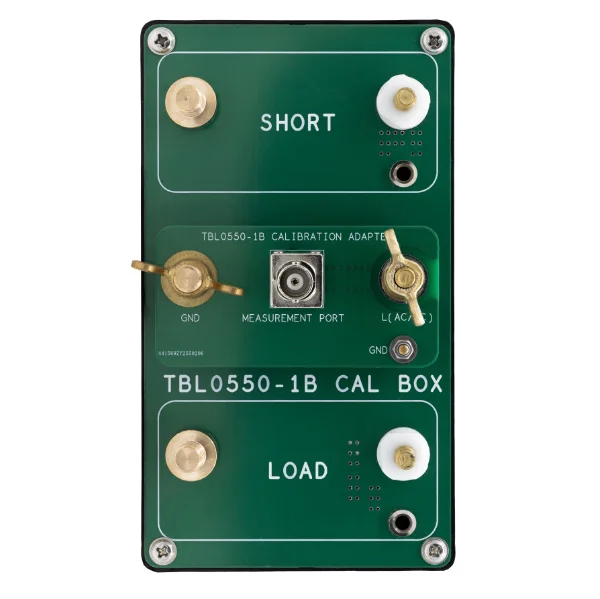

TBL0550-1B 5uH 50A Line Impedance Stabilisation Network LISN

The TBL0550-1B is an affordable 5µH LISN designed for conducted emission measurements / line termination in the frequency range of 100 kHz to 400 MHz. It complies with CISPR-25 (EN 55025), numerous automotive manufacturer standards, MIL-STD-461F, DO-160, AECTP-500 and ISO 7637-2.

LISNs are inserted into the supply lines of the EUT (Equipment Under Test). Conducted noise which is present at the supply terminals of the EUT can be measured at the BNC connectors using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the EUT terminal are decoupled by a 5µH inductor.

Two TBL0550-1B in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.

SPECIFICATIONS

  • Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 set ups; an external 10µF capacitor is required for DO -160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper.
  • Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2
  • Characterized frequency range: 10 kHz – 400 MHz
  • DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT
  • Maximum current: 50A continuous; see plot with heat up characteristics, chapter 1.8
  • Maximum operating voltage range: 0 – 250V AC @50/60 Hz, 130V AC @ 400Hz, 250V DC.
  • Absolute maximum rating of internal components: 450V DC.

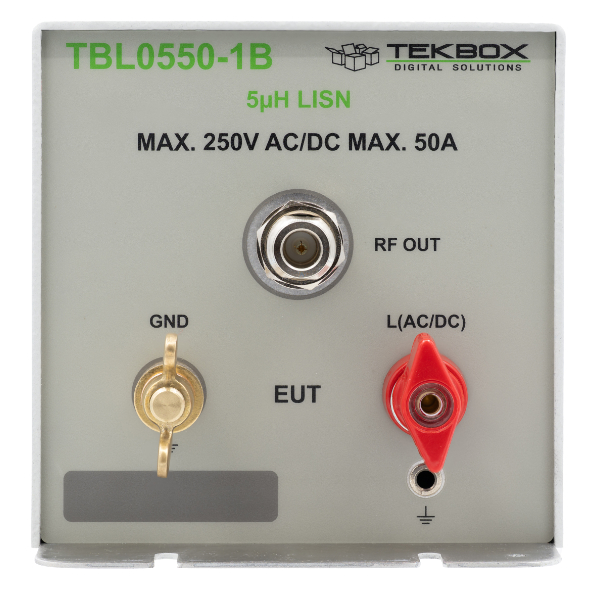

  • EUT connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L

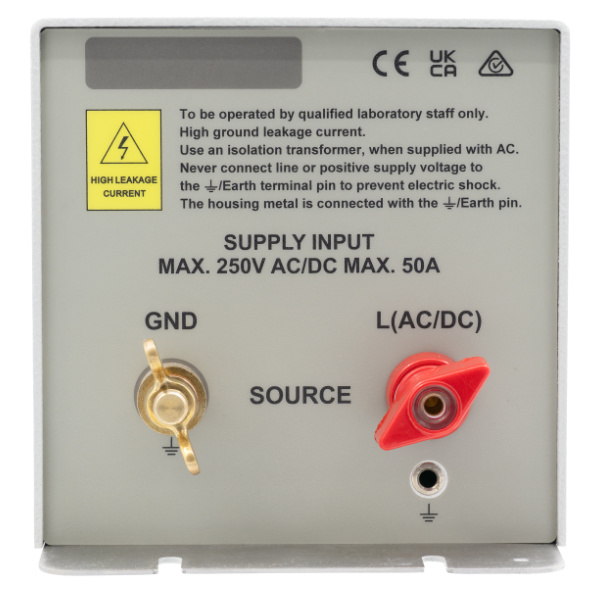

  • SOURCE connector: binding post, M6, 4mm center hole, 63A, 1kV, Schützinger POL 631 L
  • EARTH: 6 mm Earth stud with wing-nut, exposed stainless steel bottom panel with mounting slots and countersunk hole for 4mm screw
  • Jumper: Harwin D3087-98

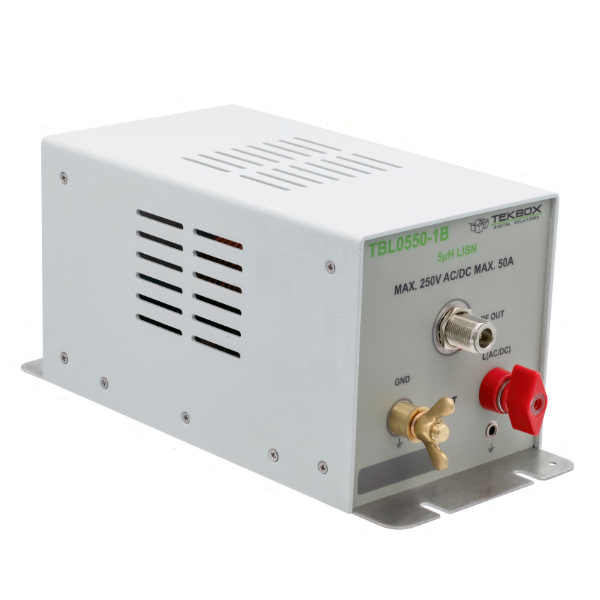

  • Dimensions: 125 mm x 125 mm x 275 mm
  • Weight: 1.75 kg

APPLICATION

  • EMC pre-compliance testing of conducted noise
